Engineering Tomorrow’s Solutions
The Polwax Differential Pressure Transmitter is engineered to deliver precise and consistent pressure, measurements for industrial and commercial applications. Built with robust technology, it ensures optimal performance even in challenging environments.

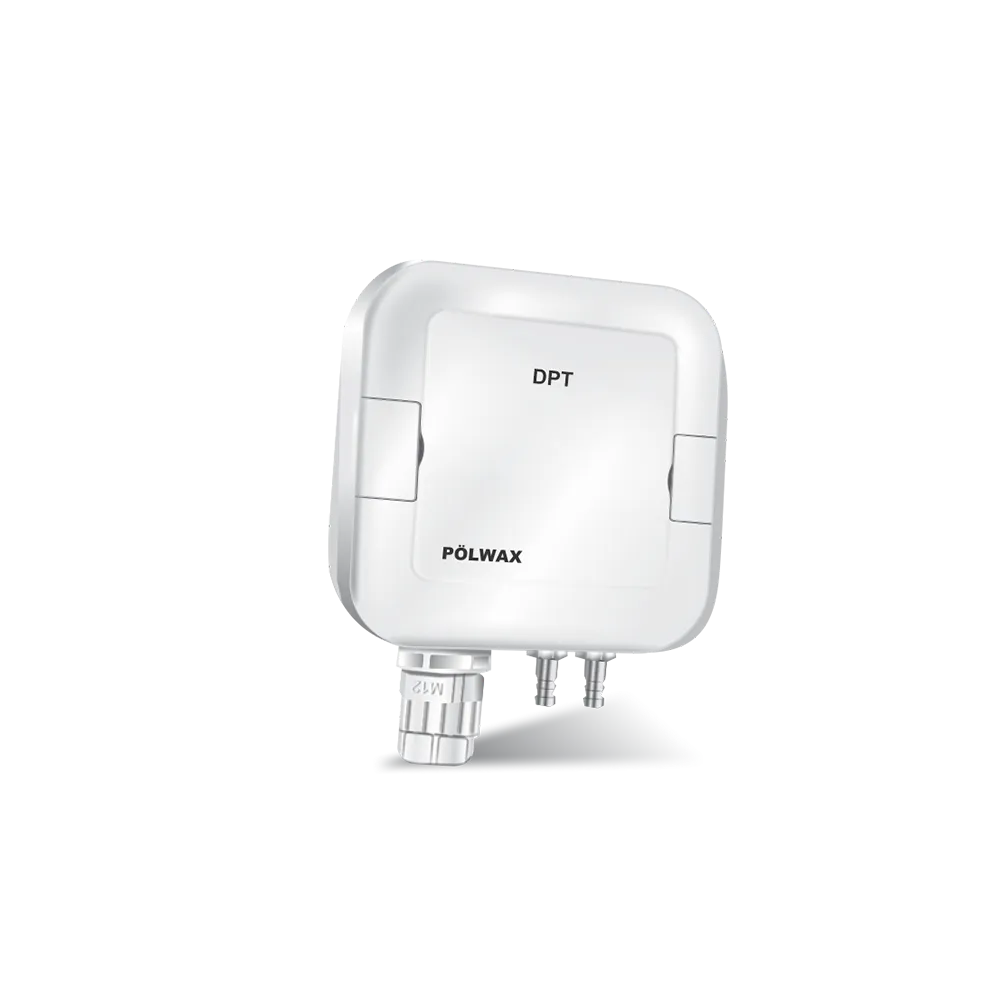

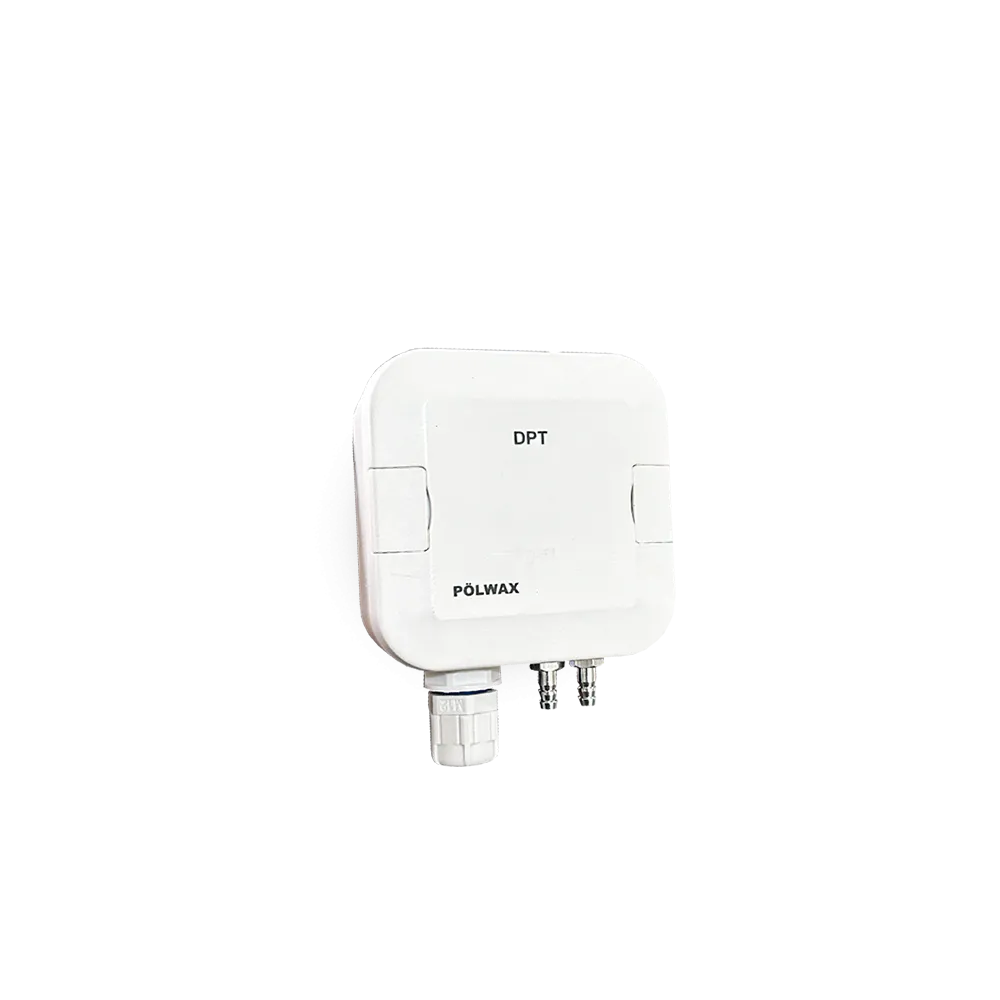

Differential Pressure Transmitter
Polwax DPT WM
- Easy to Install and suitable for Panel Mounting
- Easy to configured via USB Interface
- High Accuracy and Stability
- Eight selectable units
- Compact and Robust Design
- Protection Rating: IP65 for outdoor & harsh environment use
The Polwax Differential Pressure Transmitter is a versatile and precise solution for monitoring and managing differential pressure across a wide range of applications. Designed with configurable ranges and selectable units, it adapts seamlessly to various operational requirements. Its advanced output options, including 4-20mA, RS485 MODBUS RTU, and an optional 0-10V, make it compatible with diverse systems and ensure smooth integration.
The Polwax Differential Pressure Transmitter combines advanced technology with robust construction, ensuring reliable and accurate performance in even the most challenging environments.
Product Overview
Differential pressure transmitters from the PLX DPT 50 series are designed for building automation in the HVAC/R sector. The most cutting-edge transmitters available today measure static and differential pressure and have a single device with field-selectable units, range, and output. multiple measurement units, jumper-controlled field selection, including: psi, inchWC, mmWC, mbar, kPa, and mbar. 8 measurement ranges that can be chosen in the field, either unidirectionally or bidirectionally (see Model Summary). Options for proportional output include voltage (0–10 V ). as well as current (4-20 mA). A reasonably priced differential pressure transmitter performance ratio for air cooling applications ventilation engineering. Excellently suited for the differential is the Polwax PLX DPT 50. pressure-based air filter, fan, and air quality monitoring flow, for a comfortable environment and maximum energy effectiveness.
The universal design of the Polwax PLX DPT 50 provides the user complete flexibility to make adjustments on the job site. The field programmable range, mounting options (DIN Rail, wall mount, and duct mount), output options (mA or Volt), and engineering unit are all available to the user (W.C. or Pascals). Because of its adaptability, Polwax can be used by the contractor for all of their requirements.
The Polwax DPT50 Differential Pressure Transmitter is an advanced and versatile device designed to meet the precise needs of the HVAC/R sector. Engineered for energy efficiency and reliability, the DPT50 is the ideal choice for applications like air filter monitoring, fan control, and indoor air quality measurement.
The Polwax DPT50 Differential Pressure Transmitter is designed with precision and versatility in mind, ensuring it meets modern building automation demands. Its innovative design combines robust performance with ease of use, making it an industry leader in differential pressure measurement.
Find More
Technical Data
Media compatibility
Air, non combustible, non corrosive gases
Model No
DPT50 WM
DPT100 WM
DPH100 WM
Part Code
0395 3300
0395 3301
0395 3302
Full Range
0-7000Pa
0-7000Pa
0-7000Pa & Temp-RH: T: -30 to 80 Deg. Cel. & RH: 0-100%
10 Configurable Ranges
0-25Pa, 0-50Pa,0-100Pa,0-250Pa,0-500Pa,0- 1000Pa,0-2000Pa,0-2500Pa,0 -5000Pa,0-7000Pa
Seletable Units
Pa & mmWC
Accuracy (from applied pressure)
0.25 % / 0.5 % of FS
Output
4-20mA, RS485 MODBUS RTU
Output
0-10V (Optional)
Measuring Units
Pa, kPa, mbar, inchWC, mmWC, psi
Signal Connection
3 Wire
Load Resistance
47 to 470 Ω @ 24 VDC
Supply Voltage
12 - 24 VDC
Operating Temp
10° to 60°C
Storage Temp
10° to 80°C
Pressure Limit
1 PSI Maximum
Switch
Digital push button.
Enclosure
ABS
Protection Class
IP54
Electrical Connections
Screw terminals
Process Connection
Push on connection for 3/16” ID tubing
Weight
70 Gram
Response Time
500 ms
Scope of Supply
Calibration Certificate+GUI Software, Manual
Features
Easy Installation
The Polwax DPT50 is designed for straightforward and hassle-free installation. It supports multiple mounting options, including panel, wall, DIN rail, and duct mounting, making it suitable for various applications and site conditions. Multiple Mounting Options: The transmitter is compatible with panel mounting, wall mounting, DIN rail mounting, and duct mounting. These versatile mounting options ensure that the device can be installed in a variety of configurations to meet specific project needs.
High Accuracy and Fast Response
The Polwax DPT50 Differential Pressure Transmitter delivers exceptional precision and responsiveness, making it a vital tool for applications requiring reliable and real-time pressure monitoring. With an accuracy of ±0.25% or ±0.5% of full scale (FS), the DPT50 ensures consistent and dependable measurements, even in critical environments such as HVAC/R systems, cleanrooms, and industrial automation. Its rapid response time of just 500 milliseconds provides near-instantaneous updates, enabling real-time monitoring and control.
USB Configuration Interface
The Polwax DPT50 Differential Pressure Transmitter features a user-friendly USB configuration interface that simplifies setup and enhances operational efficiency. This intuitive interface allows users to quickly configure the transmitter’s parameters, such as measurement range, output type, and engineering units, directly from a connected device. Eliminating the need for complex programming tools, the USB interface ensures that adjustments can be made effortlessly, even on-site.
