Smart Monitoring-Anywhere, Anytime.
The Polwax Mobile Data Logger Series is a versatile, portable solution designed for advanced industrial monitoring and data recording. Built to work with a wide range of third-party sensors and transmitters, these loggers are ideal for capturing critical process parameters in real time across multiple sectors.
Previous
Next

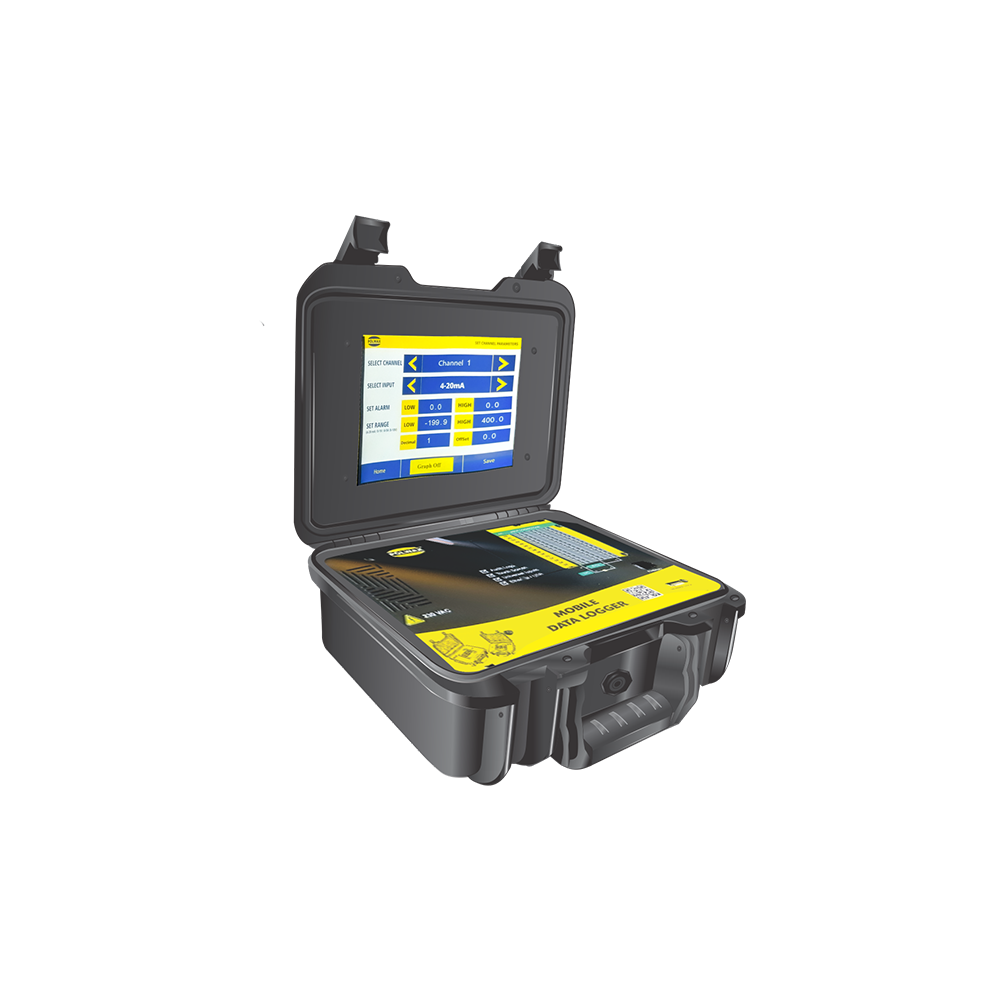

Mobile Datalogger
Polwax MR3200 / MR3200+ / MR3200PRO
Part Code: 0390 3290 / 0390 3291 / 0390 3292
- Easy to Carry
- Light Weight
- USB Connection
- User Friendly Menu
- TFT Touch Screen Display
- Cloud Dashboard for Data Monitoring
The Polwax Mobile Datalogger is an advanced data acquisition solution tailored to meet the demands of modern industrial, laboratory, and field applications. With its 32-channel universal input, large 8-inch touch display, and versatile communication options, the Data Loggers is engineered for precision, reliability, and user convenience.
The Polwax Data Loggers offers unparalleled flexibility and performance for professionals seeking advanced data acquisition solutions. Its large display, high channel count, and robust construction make it an ideal choice for demanding applications. The Data Loggers supports up to 32 universal input channels, allowing it to monitor multiple parameters such as temperature, pressure, flow, and more. Polwax stands at the forefront of innovative data logging technology.
Product Overview
The Polwax Mobile Datalogger Datalogger is engineered to meet the growing demands of industries that require reliable, real-time data monitoring. With 32 input channels, the Datalogger offers enhanced capacity for large-scale data acquisition, ideal for sectors such as environmental monitoring, industrial process control, and research and development.
Equipped with a large 8″ touch display, the Mobile Datalogger MR3200 allows users to interact with the system efficiently, making it easier to navigate data and settings. The universal input options make it compatible with a variety of sensors, while the USB and RS485 communication ports ensure seamless data transfer. For advanced users, the Open MODBUS RTU option allows for better integration into automation systems, enabling real-time control and monitoring.
This mobile datalogger is designed to work efficiently in the field, offering 230 VAC power supply to ensure uninterrupted operation. The robust, portable design makes it easy to carry to various locations, while its large number of channels provides the flexibility to record and analyze multiple parameters at once.
The Polwax Mobile Datalogger is supplied with all necessary accessories, including the soft carrying case, desktop software, and test & calibration certificate, ensuring that your device is ready to use upon arrival. The instruction manual provides detailed setup instructions to ensure a smooth installation process.
Whether you’re collecting data on-site or managing complex monitoring systems, the Polwax Mobile Datalogger offers unmatched flexibility and performance. With its ability to handle large-scale data acquisition and its easy-to-use interface, it’s the perfect tool for professionals looking to enhance their data logging capabilities.
Explore the Polwax Mobile Datalogger and experience the power of efficient, high-capacity data logging. Contact us today for more details or to place your order. The Polwax Mobile Datalogger is a high-performance, versatile device designed for industries that require extensive data collection and monitoring.
Find More
Please download our document to see specific data of the service and how we work.
Product Overview
Technical data
Sensors
Applications
Documents
Softwares
Click here
Technical Data
Model No
Polwax MR3200
Polwax MR3200+
Polwax MR3200PRO
Part Code
0390 3290
0390 3291
0390 3292
Data Communication
USB , RS485
USB, RS485 , Ethernet
USB, RS485, Ethernet , WiFi
No of Channels
32
Inputs
Universal / RTD Pt100 / Thermocouple / 4-20mA / 0-10V / Customize
Accuracy
± 0.25 % of FS
Resolution
RTD: 0.1 / TC: 1
Display
8″ Touch Screen Display
Ethernet Communications
Modbus TCP
Password Protection
Access to conguration is allowed only after the user has entered a password
Cloud Dashboard
Webbase*(Optional)
Filename
Name tag, prexed with date/time
Settable Interval
1sec to 24h
Thermocouple Types
B, E, J, K, L, N, R, S, T
Resistance Thermometer (RTD)
Pt100
Power Supply
220 – 240 VAC ( 50 Hz)
Operating Temperature
10°C to 50°C
Storage Temperature
40°C to 70°C
Data Monitoring Software
POLWAX_View10.4 (Suitable for Win10 / Win10Pro)
Report Format
.PDF/.CSV/.XLSX
Language
English
Scope of Supply
Datalogger, Soft Carrying Case,Ethernet Software,
Basic Desktop Software,Power Cord,
Test & Calibration Certificate,
Instruction Manual
Suitable for any third party Sensors /
Transmitters
Compressed air and gas flow meters
Installation and removal through a normal 1/2″ ball valve when under pressure. A safety ring prevents uncontrollable ejection in the event of installation or removal while under pressure. nitrogen, argon, CO2, compressed air, and oxygen.
Dew Point Sensors
Extremely durable; very stable Large measurement range (-80° to +20 °Ctd), short adaptation time For every dryer: (Adsorption dryers, membrane dryers, and refrigeration dryers) Fast coupling standard measuring.
Pressure Sensors
A wide choice of pressure sensors with various measuring ranges for each measurement purpose Pt100 (2-wire or 3-wire) Easy connection installation under pressure. Temperature sensors a lot of temperature options sensors.
Applications
Warehouse
Mobile dataloggers play a vital role in modern warehouse management by providing real-time, accurate monitoring of temperature and humidity conditions throughout storage and distribution facilities.
Mining
Mobile dataloggers are increasingly essential in the mining industry, where real-time monitoring and recording of environmental and process parameters are critical for operational safety, efficiency, and regulatory compliance.
Hydrophore station
Mobile dataloggers are an ideal solution for hydrophore station applications, providing reliable, real-time monitoring and recording of key operational parameters such as pump status, water pressure, flow rate, and tank levels.
Cement Industry
Mobile dataloggers are a valuable asset in the cement industry, where continuous, accurate monitoring of environmental and process parameters is essential for operational efficiency, product quality, and regulatory compliance.
Pump station
Mobile dataloggers are transforming pump station management by providing real-time, remote monitoring and comprehensive data recording of critical operational parameters such as flow rate, water level, pressure, pump status, and power consumption.
Defense
Mobile dataloggers are increasingly vital in defense applications, delivering real-time, actionable intelligence and robust operational monitoring across a wide range of military environments. Mobile dataloggers also play a key role in logistics.
Pharma Industry
Mobile dataloggers play a critical role in the pharmaceutical industry by providing continuous, accurate monitoring and documentation of temperature, humidity, and other key environmental parameters throughout manufacturing, storage.
Heat exchange unit
Efficient operation of heat exchange units is crucial in many industrial processes, where maintaining optimal temperature differentials directly impacts energy efficiency, product quality, and equipment longevity. Data is securely stored and can be exported in PDF.
Chemical Industry
In the chemical industry, precise monitoring and control of process parameters are essential for ensuring product quality, operational safety, and regulatory compliance. The Polwax Mobile Datalogger offers a robust, portable solution for real-time data.
Documents
Please download our document to see specific data of the service and how we work.
Technical Datasheet_Mobile Datalogger
3.81MB
Software
Please download our document to see specific data of the service and how we work.
Polwax P-View Data Monitoring Software
22.03MB
